Pressure measurement at 6 possible points in the hydraulic system
Pressure measurement with only one pressure gauge. Suitable for panel mounting; to select the position, turn the knob.

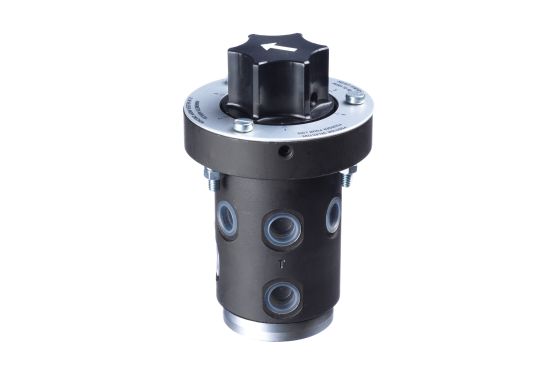

Multi-station gauge isolator valves of type SWS-M from STAUFF allow the measuring of the operating pressure in hydraulic systems on up to six different measuring points in the system with only one display device. This is generally an analogue or digital pressure gauge. The measuring point to be monitored is selected by turning the knob on top of the component.
This allows the machine operator to reduce the procurement costs and possibly also the maintenance and calibration costs for measuring devices in original equipment as well as for retrofitting.
The gauge isolator valves, which are simply installed in the lines between the measuring points and the pressure gauge using connector threads G 1/4 BSP or 7/16-20 UNC (1/4 SAE), were designed for installation in control panels with a maximum wall thickness of 5 mm. Operating instructions are conveniently printed on the cover panel in several languages at the factory.
Gauge isolator valves from STAUFF are suitable for use with all common hydraulic media and for a maximum operating pressure of 400 bar. They can be used in temperature ranges from -30 °C to +115 °C without any problems.
